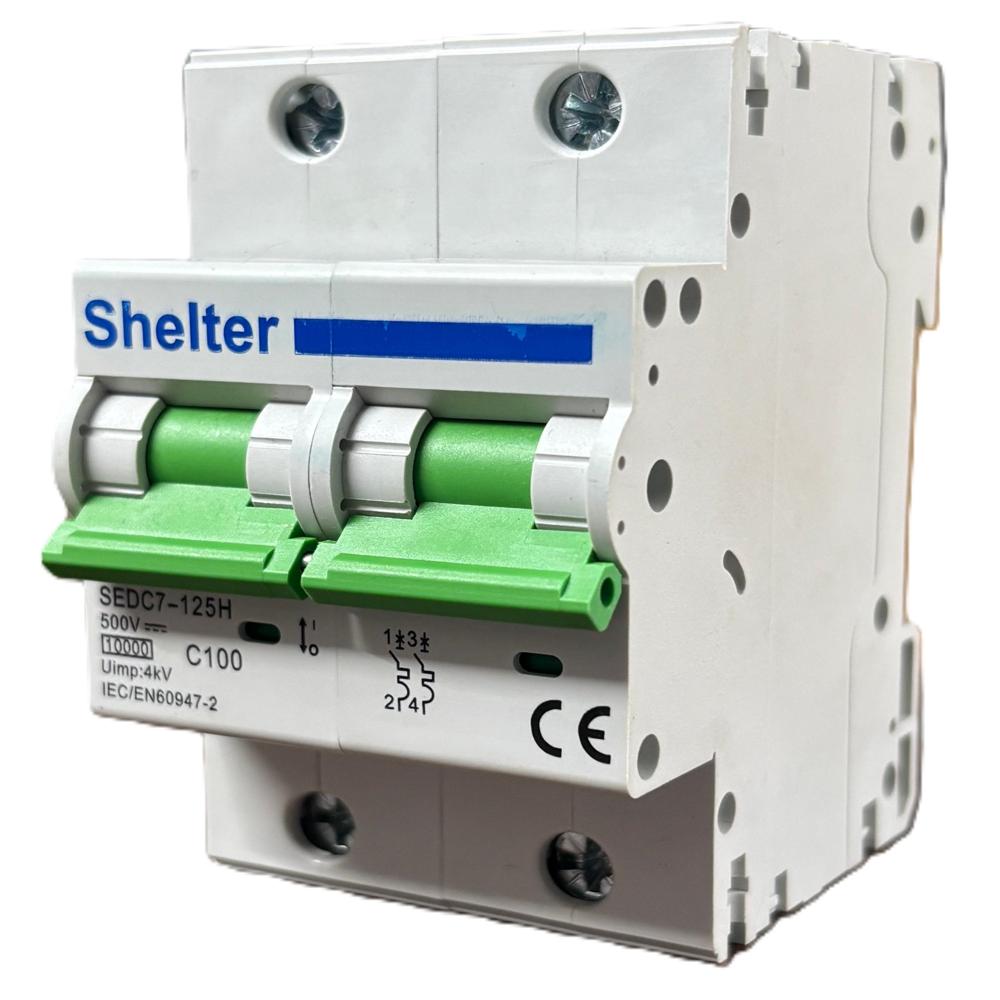

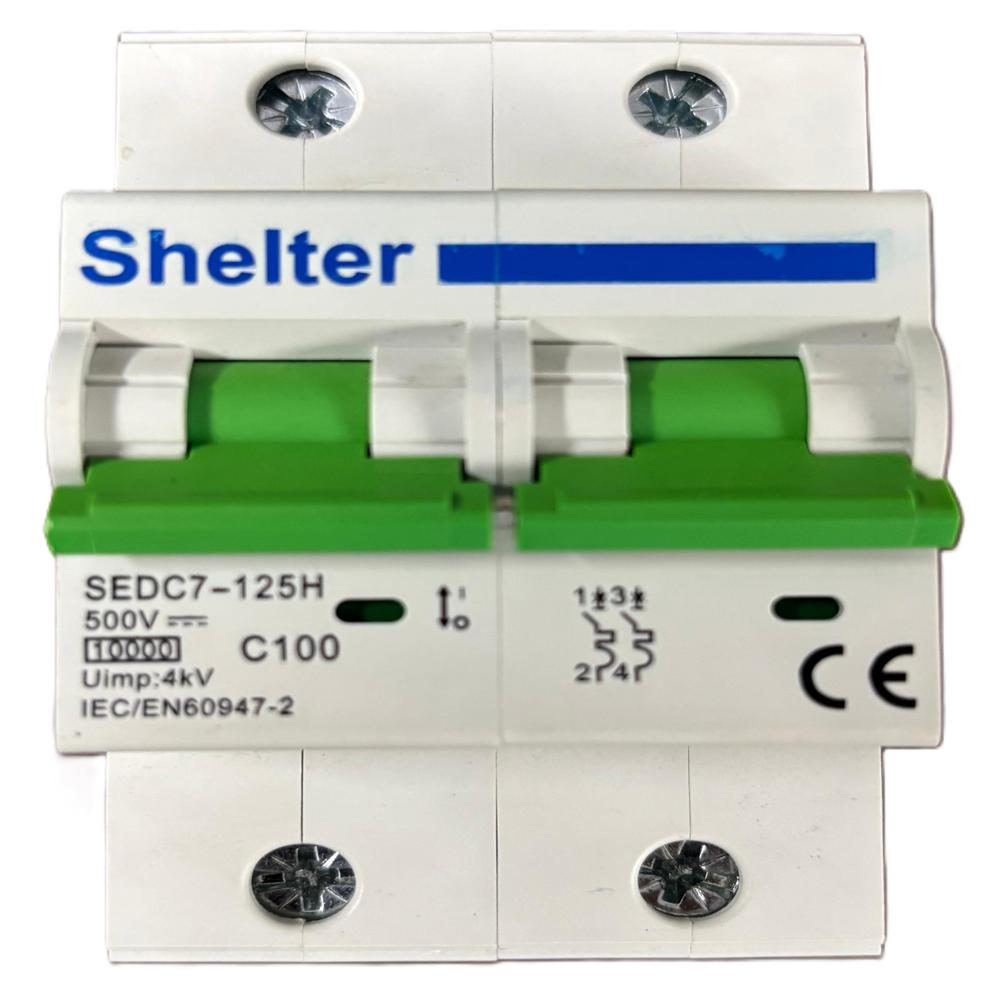

Shelter DP 100A 500V DC MCB

Product Description

The DP 100A 500V DC MCB is a precisionengineered Double Pole Direct Current Miniature Circuit Breaker designed to deliver reliable protection against overloads and short circuits in DC electrical systems. With a robust breaking capacity and highperformance design, this DC MCB ensures superior protection for solar power systems, battery installations, DC distribution panels, telecom systems, electric vehicles and other DC applications. It is ideal for both residential and industrial use where safe and stable DC circuit protection is required.

Key Features

• Rated Current: 100A for highcapacity DC circuits

• Rated Voltage: 500V DC suitable for solar, battery and DC power systems

• Double Pole (DP): Disconnects both positive and negative lines simultaneously

• Reliable Protection: Protects against overloads and shortcircuit faults

• DIN Rail Mounting: Easy installation and panel integration

• Compact & Durable: Sturdy construction with flameretardant housing

• Fast Tripping Response: Ensures safety and minimal damage in fault conditions

Applications

The DP 100A 500V DC MCB is widely used in:

• Solar photovoltaic (PV) power systems

• Solar combiner boxes & DC distribution panels

• Battery energy storage systems (BESS)

• DC backup power systems & UPS panels

• Telecom power supply systems

• Offgrid and hybrid power installations

• Electric vehicle (EV) charging infrastructure

• Industrial DC control panels and drives

• DC motor protection and automation panels
