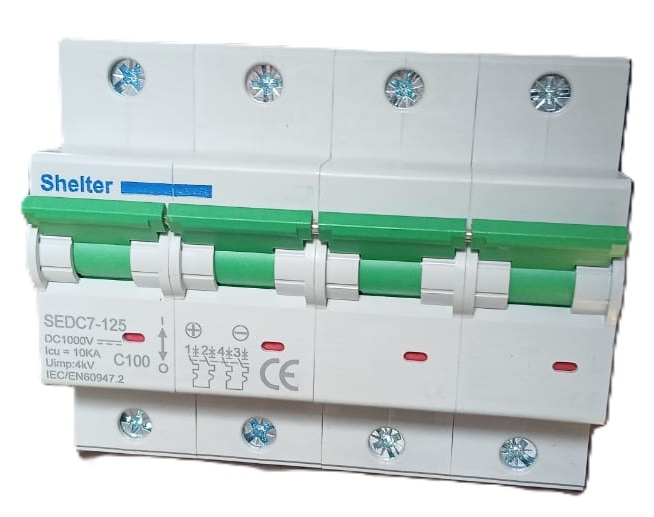

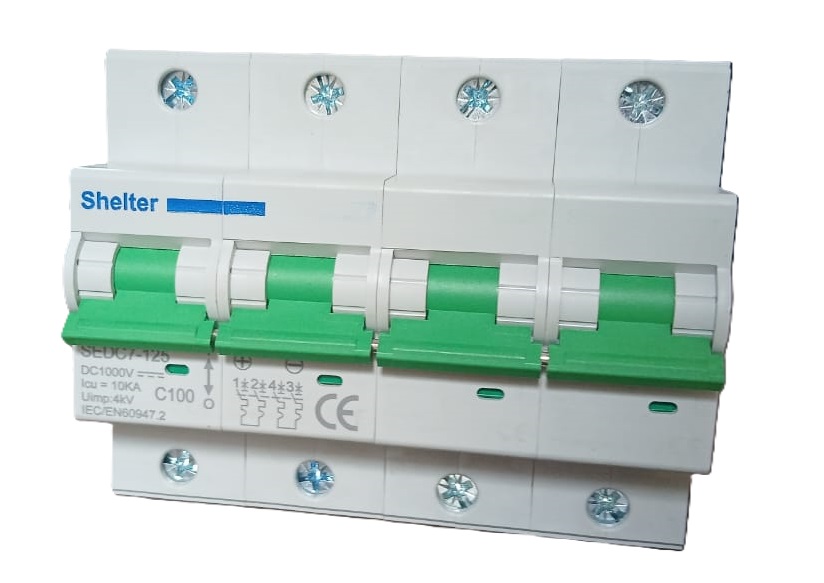

Shelter FP 100A 1000V DC MCB

About Shelter FP 100A 1000V DC MCB

FP 100A 1000V DC MCB Product Description

The DP 100A 1000V DC Miniature Circuit Breaker (MCB) is designed to protect DC circuits from overloads and short circuits in solar, battery, and industrial DC applications. It quickly disconnects the faulty circuit, preventing damage to cables, inverters, batteries, and connected equipment.

With double-pole protection and high breaking capacity, this DC MCB is suitable for solar PV combiner boxes, DC distribution boards, battery banks, and renewable power systems. It offers reliable performance, compact size, easy DIN-rail mounting, and long service life.

Key Features

• Rated current: 100A

• Rated voltage: 1000V DC

•

• Fast tripping against overload & short circuit

• High breaking capacity

• Arc extinguishing design for DC systems

• Long electrical & mechanical life

• Compact, space-saving design

• DIN-rail mounting quick installation

• Strong, flame-retardant housing

• Suitable for solar & battery applications

Technical Specifications

• Product type: DC MCB

• Poles: FP (4 Pole)

• Rated voltage: 1000V DC

• Rated current: 100A

• Tripping characteristic: DC type (model dependent)

• Breaking capacity: up to  10kA (as per model)

• Insulation material: Flame-retardant

• Mounting: DIN rail

• Standard: As per international DC protection standards

• Application: DC protection & isolation

Applications

• Solar PV combiner boxes

• Inverter DC input protection

• Battery banks & energy storage systems

• DC distribution panels

• Off-grid & hybrid solar systems

• Telecom & industrial DC power systems
