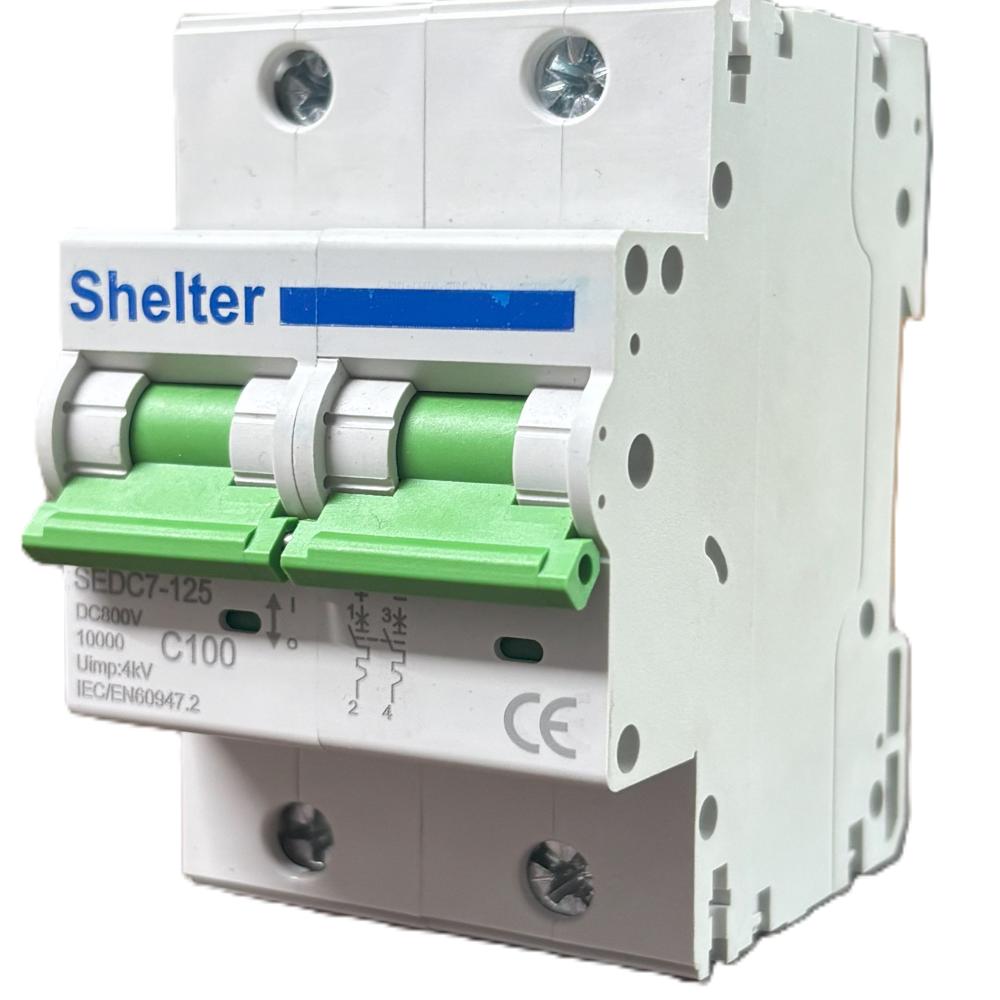

Shelter DP 100A 800V DC MCB

Name: Shelter DP 100A 800V DC MCB
Brand: Shelter Electric
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Shelter DP 100A 800V DC MCB Specification

Phase
Three Phase

Rated Short Circuit Making Current
10K Ampere (A)

Rated Short Circuit Breaking Current
10K Ampere (A)

Power Rating
Suitable up to 100A load circuit

Installation Options
Panel Mounting

Function
Short Circuit Protection

Poles Number
2

Rated Voltage
800 Volt (V)

Rated Frequency
50-60 Hertz (HZ)

Temperature Protection
Thermal Magnetic Trip Celsius (oC)

Weight
360 Grams (g)

Usage & Applications
Solar PV systems, battery banks, DC distribution, industrial control panels, inverter protection

Cable Type
Single-core / multi-core copper cable

Operating Temperature
5 C to +55 Celsius (oC)

Frequency
50 Hertz (HZ)

Features
Overload & short-circuit protection, DIN-rail mounting, high DC breaking capacity, compact design

Rated Current
100 Ampere (amp)

Material
Flame-retardant plastic body, copper contacts

Conductor
Copper / Aluminum compatible

Shelter DP 100A 800V DC MCB Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
5 Days

About Shelter DP 100A 800V DC MCB

Product Description

The DP 100A 800V DC MCB is a precisionengineered Double Pole Direct Current Miniature Circuit Breaker designed to deliver reliable protection against overloads and short circuits in DC electrical systems. With a robust breaking capacity and highperformance design, this DC MCB ensures superior protection for solar power systems, battery installations, DC distribution panels, telecom systems, electric vehicles and other DC applications. It is ideal for both residential and industrial use where safe and stable DC circuit protection is required.

Key Features

Rated Current: 100A for highcapacity DC circuits
Rated Voltage: 800V DC suitable for solar, battery and DC power systems
Double Pole (DP): Disconnects both positive and negative lines simultaneously
Reliable Protection: Protects against overloads and shortcircuit faults
DIN Rail Mounting: Easy installation and panel integration
Compact & Durable: Sturdy construction with flameretardant housing
Fast Tripping Response: Ensures safety and minimal damage in fault conditions

Applications

The DP 100A 800V DC MCB is widely used in:

Solar photovoltaic (PV) power systems
Solar combiner boxes & DC distribution panels
Battery energy storage systems (BESS)
DC backup power systems & UPS panels
Telecom power supply systems
Offgrid and hybrid power installations
Electric vehicle (EV) charging infrastructure
Industrial DC control panels and drives
DC motor protection and automation panels

Why Choose This DC MCB?

Ensures safe operation of DC electrical circuits
Prevents equipment damage from fault currents
Easy to install and maintain
Ideal for both residential and industrial DC applications
High durability with consistent performance

Suitable For

Solar installers, electrical contractors, OEM panels, industrial applications, renewable energy projects, EV charging systems, telecom and power backup solutions.
