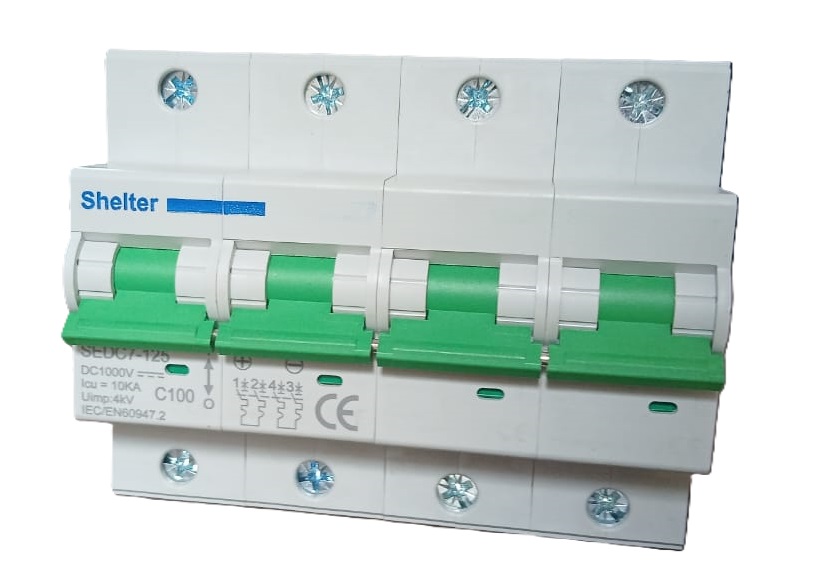

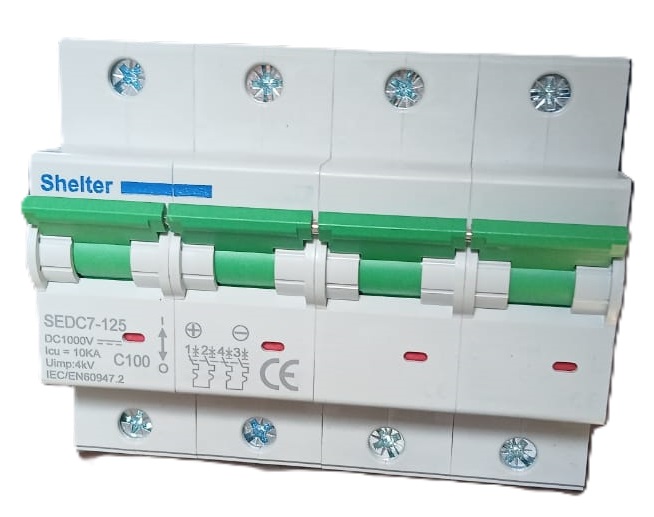

FP 125A 1000V DC MCB Four Pole (DC Miniature Circuit Breaker)

Product Description

The FP 125A 1000V DC Miniature Circuit Breaker (MCB) is designed for reliable protection of DC power systems against overloads and short circuits. It is widely used in solar PV systems, battery banks, DC panels, and industrial applications.

This four-pole DC MCB ensures safe isolation, quick tripping, and long service life, helping to protect equipment and wiring from damage.

Key Features

• Suitable for high-voltage DC systems up to 1000V

• Rated current: 125A

• Four-pole (FP) design for complete DC circuit protection

• Fast tripping for overload and short-circuit faults

• Compact DIN-rail mounting

• Flame-retardant housing for added safety

• Long mechanical & electrical life

Technical Specifications

• Product Type: DC MCB

• Poles: 4P (Four Pole)

• Rated Current: 125A

• Rated Voltage: 1000V DC

• Breaking Capacity: 6kA / 10kA (model-wise)

• Trip Curve: C / D (optional)

• Mounting: DIN Rail

• Insulation Voltage: 1200V

• Operating Temperature: 25C to +70C

• Indicator: ON / OFF marking

Applications

• Solar PV arrays and combiner boxes

• Battery storage systems

• DC control panels

• Inverter and charger protection

• Telecom & industrial DC power distribution
