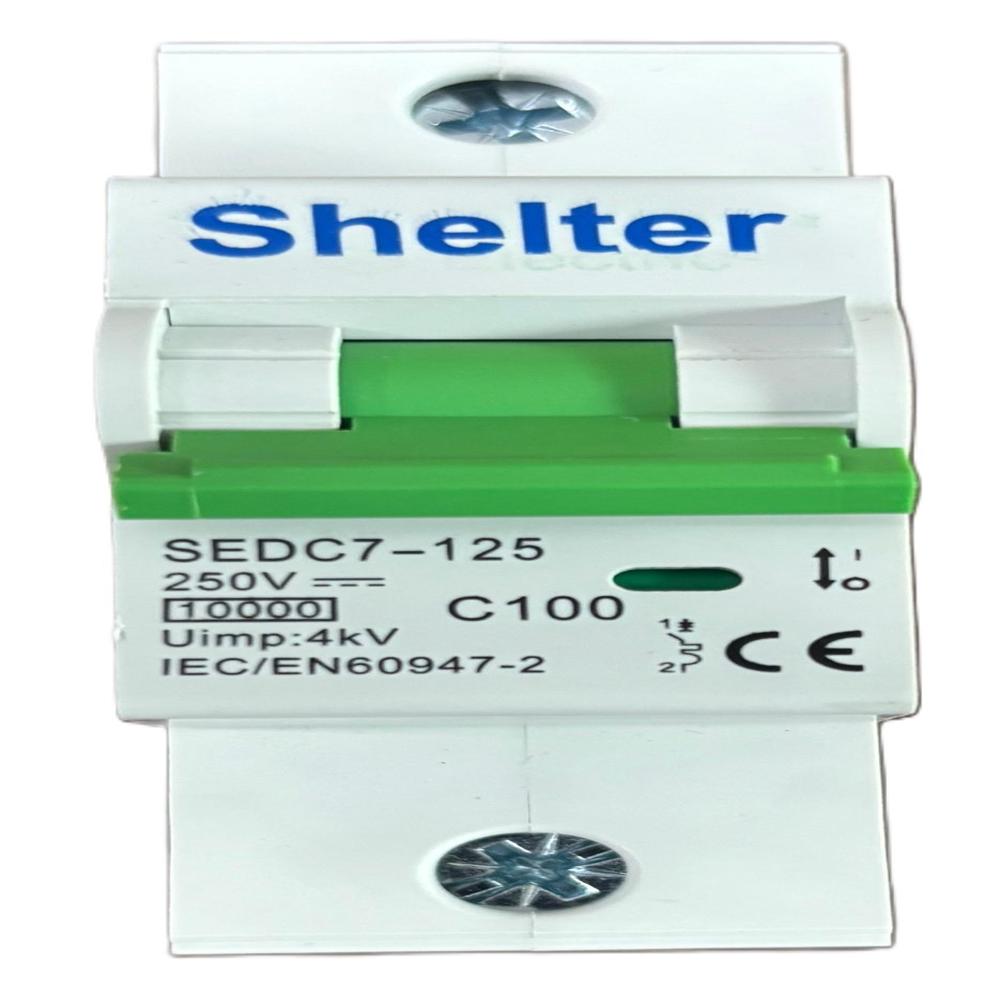

Shelter SP 100A 250V DC MCB

Name: Shelter SP 100A 250V DC MCB
Brand: Shelter Electric
Price: 440.0 INR
Availability: InStock

Price 440.0 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

Shelter SP 100A 250V DC MCB Specification

Rated Short Circuit Breaking Current
10K Ampere (A)

Rated Short Circuit Making Current
10K Ampere (A)

Power Rating
Suitable up to 100A load circuits

Function
Overload & Short Circuit Protection

Poles Number
1

Rated Frequency
50/60 Hertz (HZ)

Warranty
12 MONTHS

Curves
C Curve

Temperature Protection
Thermal Magnetic Trip Celsius (oC)

Usage & Applications
Distribution boards, machinery, control panels, industrial and commercial protection

Rated Voltage
250 Volt (V)

Weight
180 Grams (g)

Cable Type
Single core / multi-core copper cable

Operating Temperature
5 C to +55 Celsius (oC)

Phase
Single Phase

Conductor
Copper / Aluminum compatible

Frequency
50 Hertz (HZ)

Material
Flame-retardant plastic body, copper contacts

Rated Current
100 Ampere (amp)

Shelter SP 100A 250V DC MCB Trade Information

Minimum Order Quantity
100 Pieces

Delivery Time
5 Days

About Shelter SP 100A 250V DC MCB

Product Overview

The SP 100A 250V DC MCB is a highquality Single Pole Direct Current Miniature Circuit Breaker designed to safeguard DC electrical circuits from overloads and short circuits. Engineered specifically for DC applications, this MCB offers reliable and rapid protection in solar systems, battery circuits, telecom systems, DC power panels and other lowvoltage DC installations.

Key Features

Rated Current: 100 A
Rated Voltage: 250 V DC optimized for lowvoltage DC applications
Single Pole (SP): Protects one DC line (typically the positive/ live conductor)
Reliable Protection: Effective overload and shortcircuit tripping
Compact Design: Spacesaving for distribution and control panels
DIN Rail Mounting: Easy installation in DC distribution boards
Durable Build: Flameretardant, rugged housing for longterm performance
Fast Tripping Mechanism: Quick response to current faults

Applications

The SP 100A 250V DC MCB is ideal for:

Solar PV systems (string protection)
Solar combiner boxes & DC distribution panels
Battery banks & energy storage systems
UPS and DC backup systems
Telecom DC power circuits
Offgrid and hybrid power installations
Industrial DC control panels
Protection of DC motors & equipment

Benefits

Ensures safe and reliable protection of DC circuits
Minimises risk of electrical faults and equipment damage
Compact and easy to install
Suitable for both residential and commercial applications
Excellent performance in renewable and backup power systems
