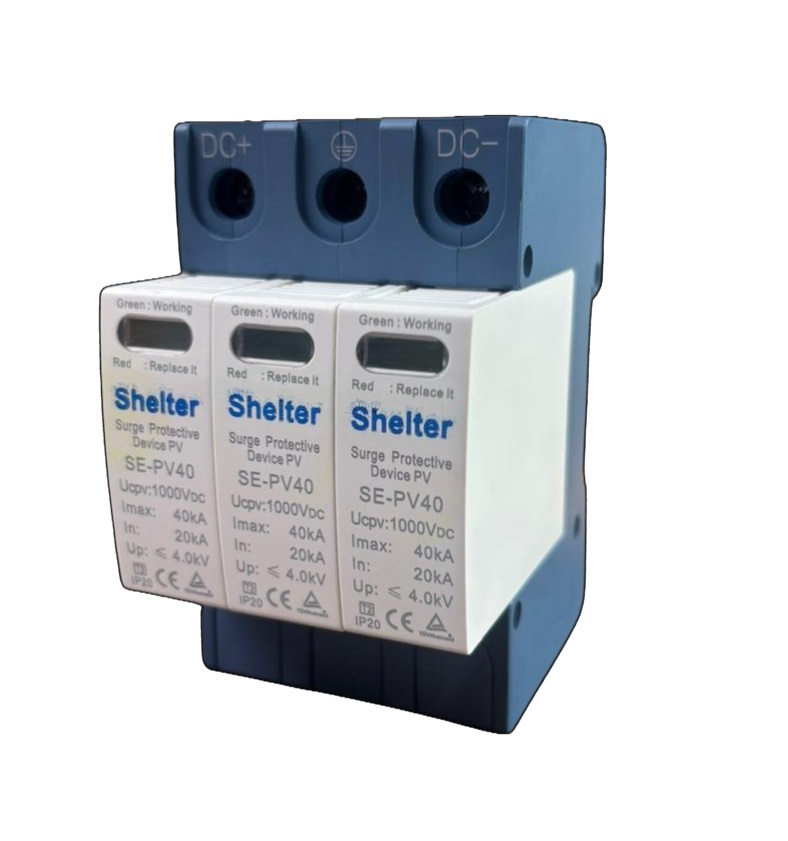

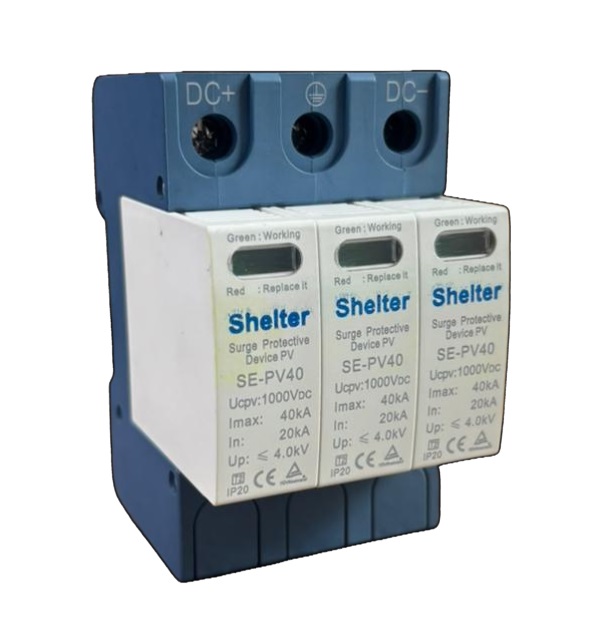

Shelter Type 2 1000V DC SPD

SPD 1000V DC Type 2 Surge Protection Device (Product Description)

The 1000V DC Surge Protection Device (SPD) is designed to protect solar PV systems and DC electrical equipment from transient overvoltage caused by lightning surges and switching spikes. It safely diverts surge current to earth, preventing damage to inverters, combiner boxes, panels, and control systems.

This Type 2 SPD is suitable for installation in DC combiner boxes, inverter inputs, and DC distribution panels. It features a compact design, replaceable modules, visual fault indication, and reliable thermal protection providing long-term surge safety for solar power systems.

Key Features

• Rated voltage: 1000V DC

• Type 2 DC surge protection

• High surge current handling capacity

• Protection against lightning and switching surges

• Built-in thermal disconnection safety

• Visual status / fault indication window

• Low residual voltage

• Replaceable protection modules

• DIN-rail mounting for easy installation

• Strong and durable ABS housing

Technical Specifications

• Nominal voltage: 1000V DC

• Protection type: Type 2 (DC)

• Poles available: 2P / 4P (as per model)

• Max discharge current (Imax): up to 40kA / 60kA (model dependent)

• Response time: < 25 ns

• Insulation material: Flame-retardant

• Mounting: DIN rail

• Application: Solar PV & DC distribution panels

Applications

• Solar PV power plants

• DC combiner boxes

• Inverter input protection

• Rooftop & ground-mounted solar systems

• Battery and DC panels

• Renewable energy installations
