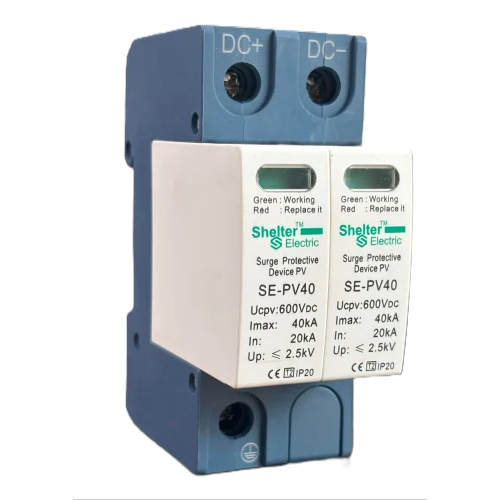

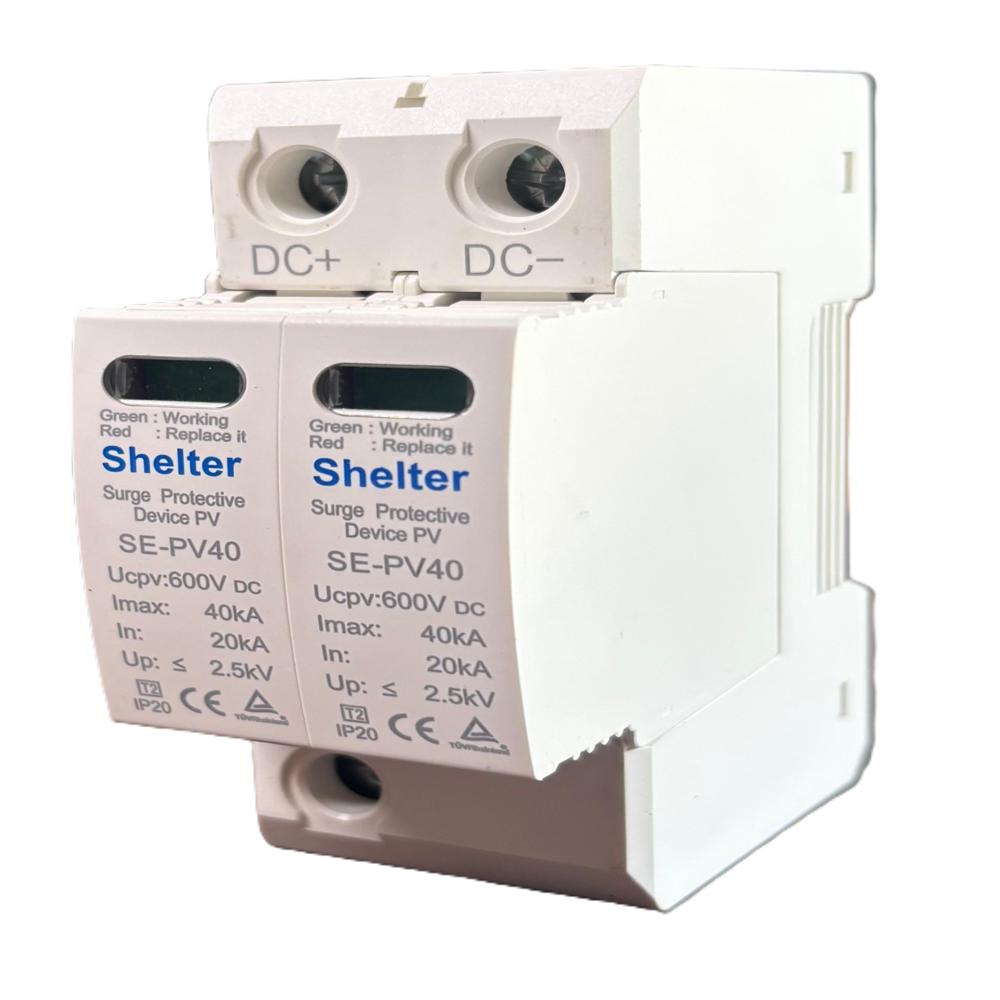

Shelter Type 2 600V DC SPD

 Surge Protection Device (SPD) 600V

Our 600V Surge Protection Device is designed to safeguard electrical systems and sensitive equipment from transient over-voltages caused by lightning, switching surges, and power disturbances. It provides reliable, fast-acting protection, ensuring system stability, extended equipment life, and improved safety.

Key Features

• Suitable for 600V power systems

• High surge discharge capability

• Fast response time (<25 ns typical)

• Thermal protection & overload protection

• Visual indicator for protection status

• Modular & replaceable cartridge design

• Compact DIN-rail mounting for easy installation

• Low residual voltage ensures superior protection

Applications

• Industrial control panels

• Commercial buildings

• Solar PV systems & inverters

• UPS, VFDs, servers, telecom equipment

• Distribution boards & power panels

Technical Specifications

• Rated Voltage: 600V

• Protection Type: Type 2 (or Type 1+2 optional depending on model)

• Max Discharge Current (Imax): 4060kA (model dependent)

• Nominal Discharge Current (In): 2030kA

• Response Time: < 25 ns

• Mounting: DIN Rail

• Connection: Screw terminals

• Safety Compliance: IEC 61643 / EN 61643 (or equivalent)
